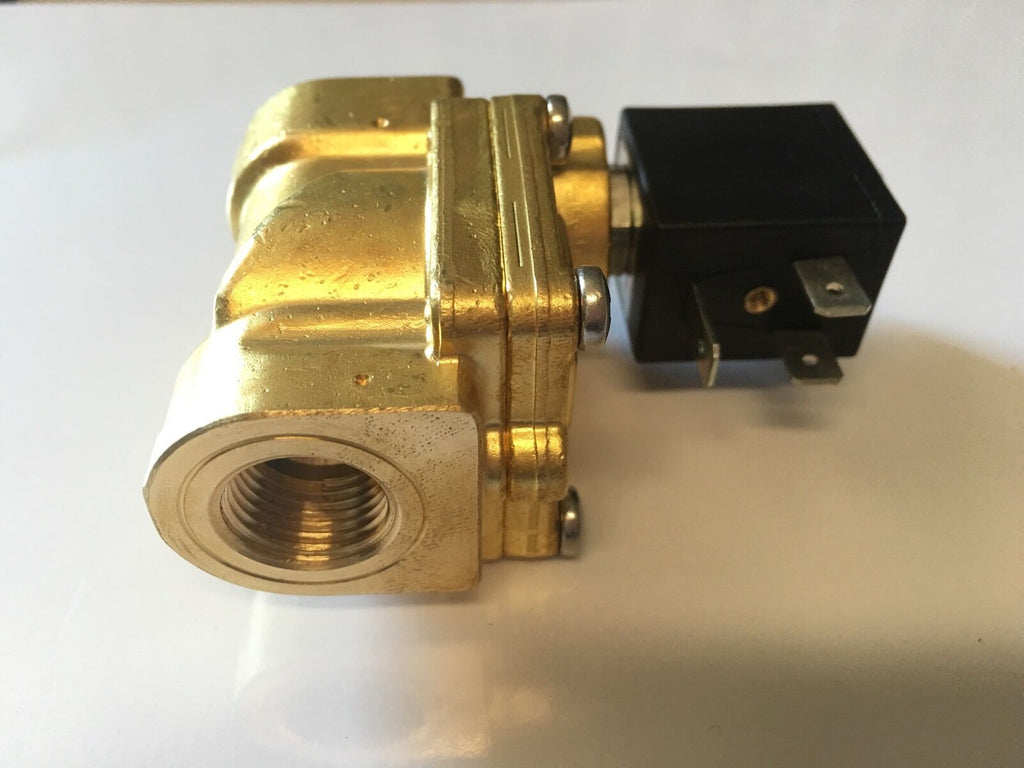

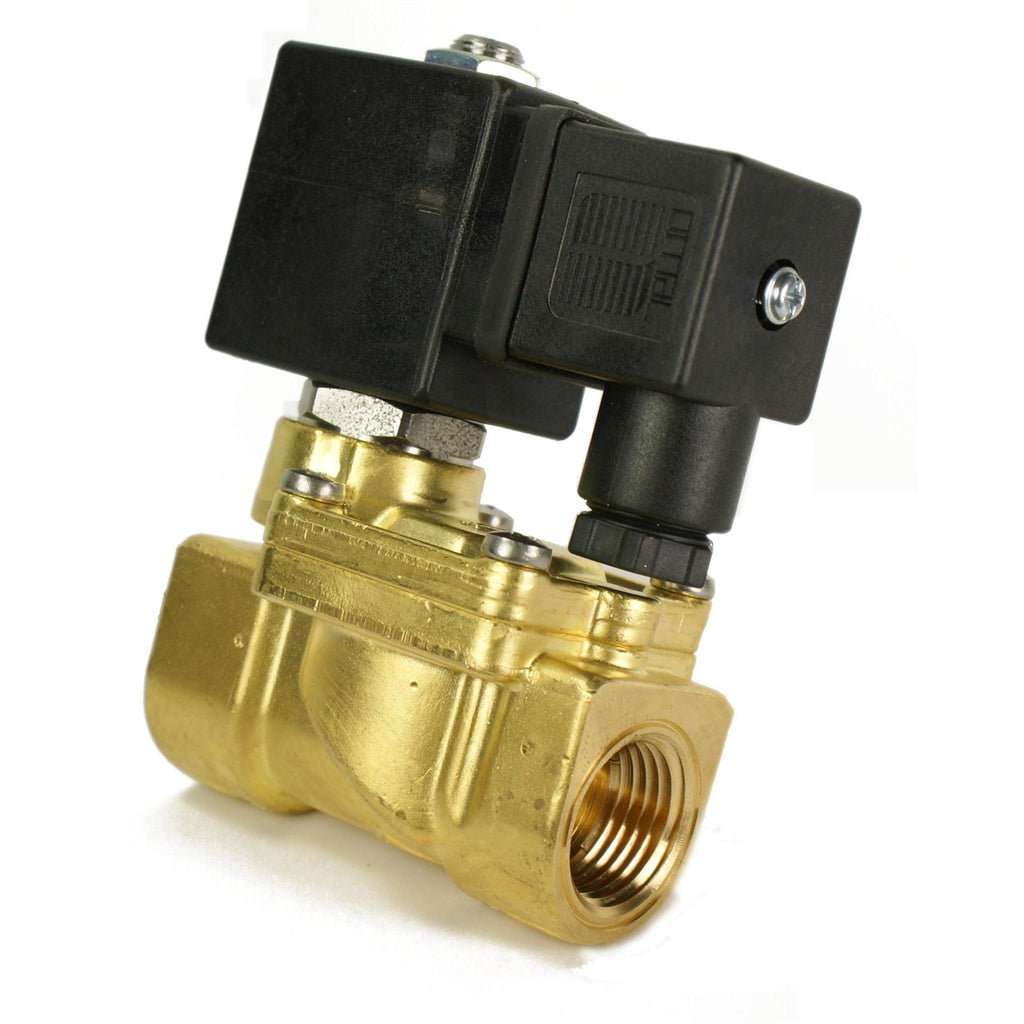

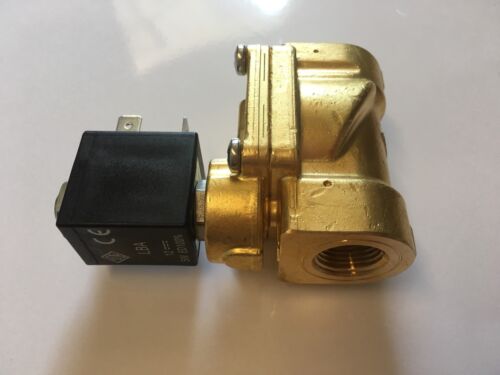

ODE 3/8 Brass Valve
ODE S solenoid valves are designed for high flow, high reliability air suspension systems. The unique design provides high pressure control at minimal power consumption. Not your typical cheap China valve, Italian made of brass.
Benefit
- High flow
- 300 psi inlet pressure capability
- DIN connection for easy wiring
- Compact size for tight locations
- High ambient temperature rating (176℉F) for under hood applications
Specification
- Pipe Size - 3/8
- Orifice - 17/32
- CV - 2.89
- Pressure Differential - 5
- Max Pressure - 230
- Max Fluid Temp - 195
- PN - SC8238T402
- Watts - 8
