1958-1964 Impala Air Suspension Kit With Slam Valve

  • Sale
  • Regular price $ 2,145.00
Shipping calculated at checkout.


Impala Kit With Slam Valve 1958-1964

 This is a complete kit with a US Made Slam Air Valve Manifold. The manifold has built in 3/8 PTC connect air fittings, so changing airline size is not an option in this kit. This is considered a slow to medium speed set up since the manifold has smaller inner passage ways which make it more compact, but in turn slow the speed in which the air travels. This is a great option for an easier installation.

Hot Spot Fab always recommends purchasing a water trap to put inline between the air tank and air valve. It is not required, but does extend the life of the air valve by catching debri before it enters the air valve.

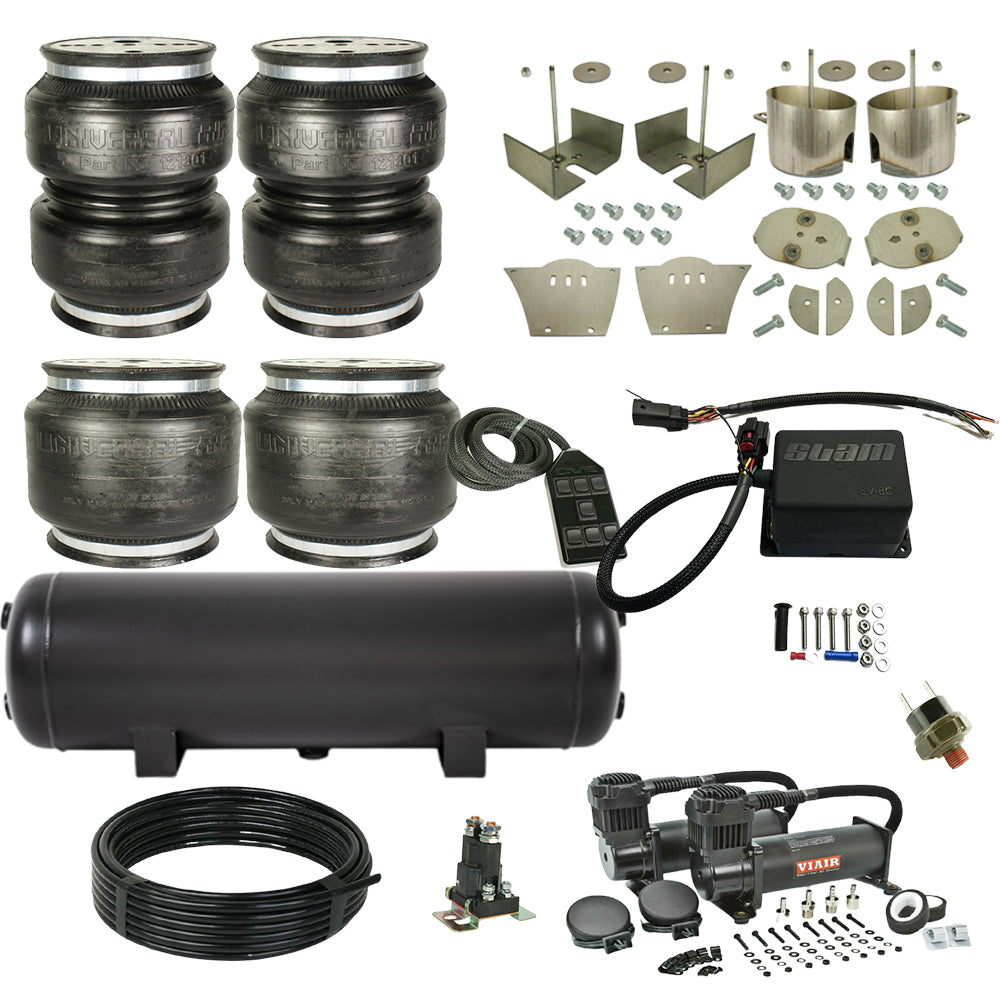

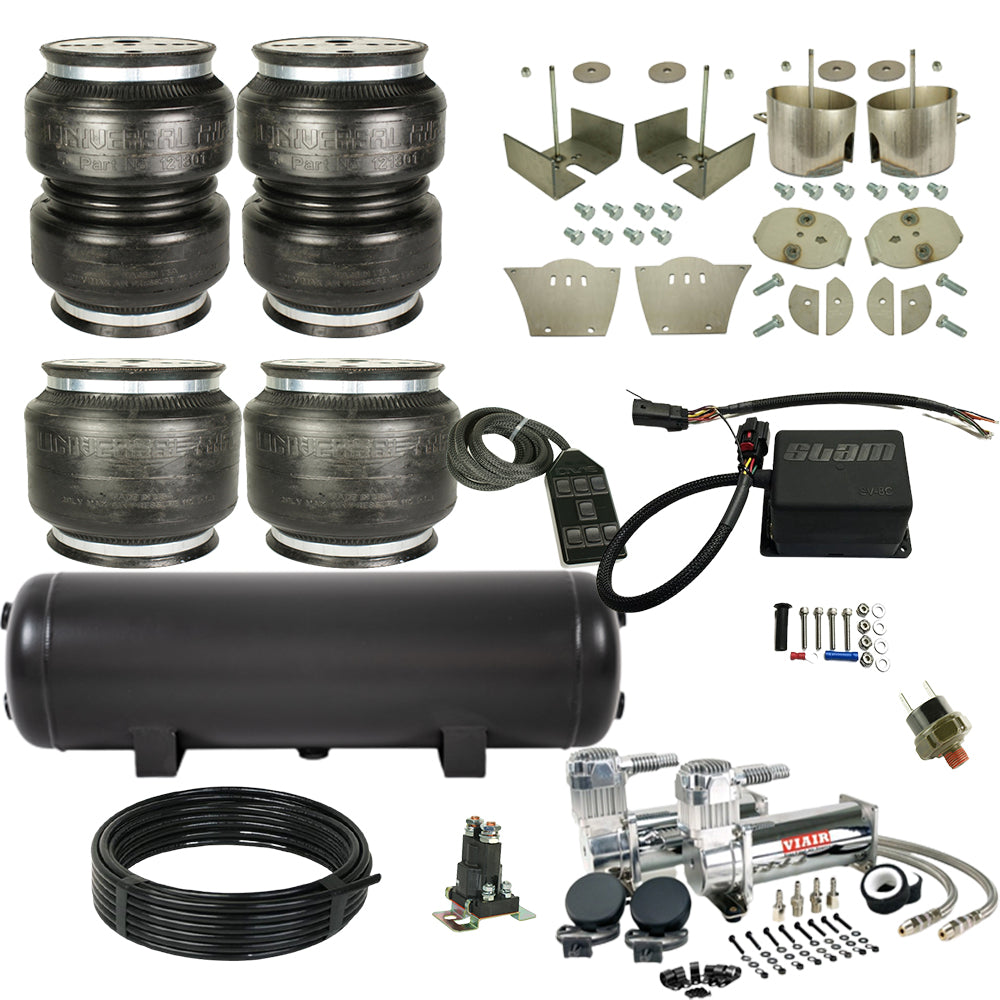

KIT INCLUDES:

(1) 4 gallon Black Aluminum air tank
(1) Dual Combo 444c Black or Chrome Viair compressor
(1) Slam Specialty SV-8C Valve USA Made
(1) 80 Amp Relay
(1) 200 PSI Pressure switch
(1) AVS 7 switch box
(1) 50 Foot Roll of 3/8 inch Air Line
(2) Air House 2 Air Bags USA Made
(2) Double Play Air Bags USA made
All Brass Air Fittings USA Made



BRACKETS:

USA Made 1958-1964 Impala Bolt-On Front/Rear Bracket. Bolts into your front spring pocked and lower arm. Bolt-in application. Designed to drop to the ground. Must be used with Air house II & Double play to not require any frame modification.  Only requires 3/8" hole drilling on lower front arm and rear upper spring pocket.  NO CUTTING FACTORY FRAME

Car can return to Original Suspension even after installation

Additional:  Our kits do not include wiring. 4 gauge SAE cable is recommended for 2 compressors as well as 16 gauge SAE cable for valves and pressure sensor.
